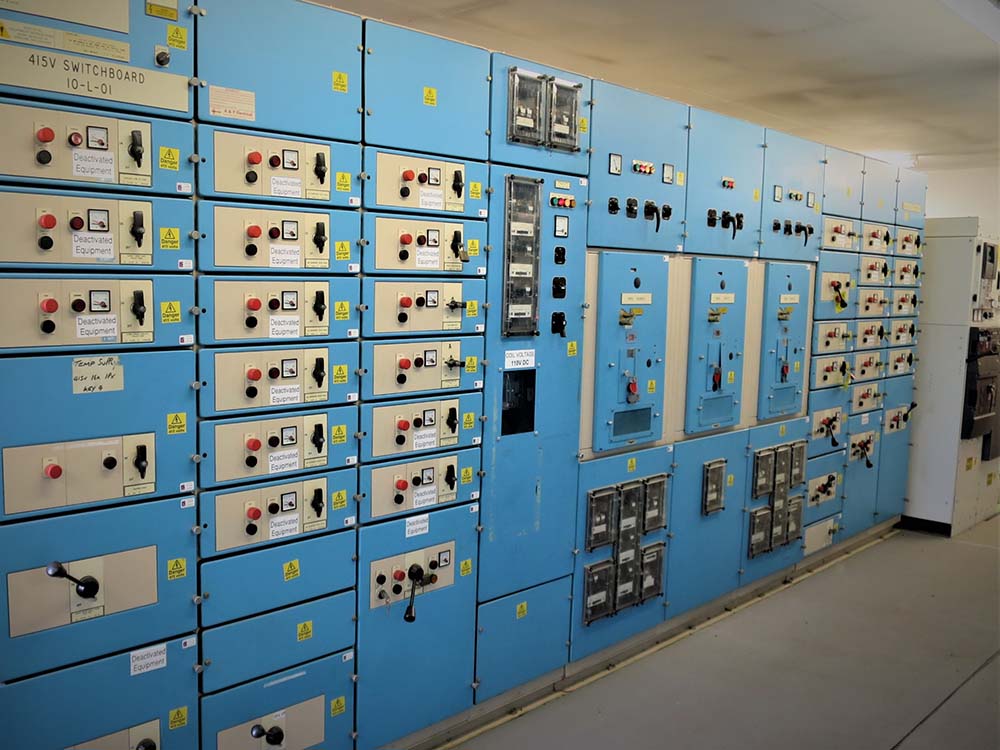

Centaur Switchgear

The CentaurTM Low Voltage range of control gear was originally manufactured by Laurence Scott and Electromotors Ltd .

LS Engineering Services Ltd can fully support all forms of manufacture, maintenance, repair and modification to this equipment including;

  • Manufacture and testing of complete switchboard assemblies including busbar system
  • Manufacture and testing of new upgraded/down rated cubicles for installation on site
  • Retrofit solutions for aged / obsolete components
  • Retrofit energy metering solutions
  • ACB retrofit solutions
  • Fully documented intrusive routine maintenance programs
LS Engineering Services - Electrical Switchgear

Slendaur Switchgear

The SlendaurTM range of control gear was originally manufactured by Laurence Scott and Electromotors Ltd and comprised 3.3kV and 6.6kV versions.

LS Engineering Services Ltd can fully support all forms of manufacture, maintenance, repair and modification to this equipment including;

  • Manufacture and testing of complete truck assemblies
  • Manufacture and testing of complete housing assemblies including busbar system
  • Retrofit solutions for aged / obsolete contactors
  • Retrofit energy metering solutions
  • Mechanical interlock failure investigation and rectification
  • Fully documented intrusive routine maintenance programs
LS Engineering Services - Electrical Switchgear

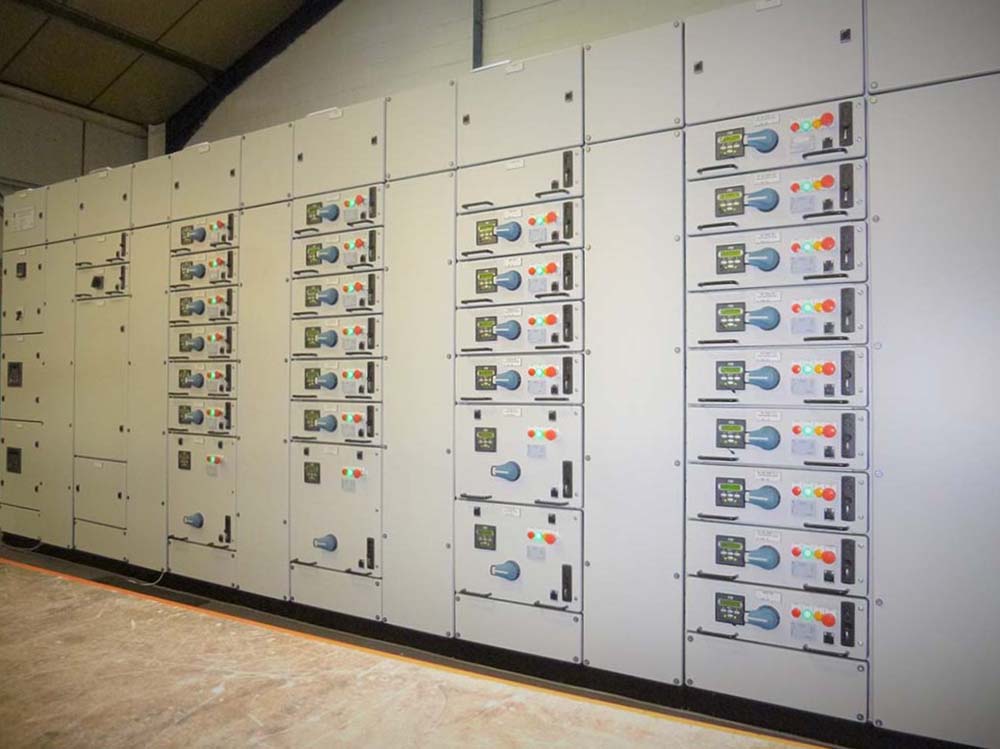

LV Switchgear

LS Engineering Services Ltd assemble, fit, wire and test a range of modular LV switchgear.

The modular system we use incorporates fixed, removable, withdrawable and inline technology for switchboards and motor control centres, and can be designed to suit your exact requirements.

Major benefits include:

  • Minimum downtime
  • Re-configuration of units while panel is live
  • Ability to interchange different unit types
  • Fully Type Tested
  • Internal Arc Protection

The Busbar System consists of modular components, which allows unlimited variations and ratings. Three, four and five wire systems can be designed with ease, and ratings up to 8500A are standard, and tested for both temperature rise and short circuit level.

LS Engineering Services - Electrical Switchgear

MV Switchgear

LS Engineering Services Ltd assemble, fit, wire and test a range of modular MV switchgear.

The system we use is primary distribution air insulated switchgear suitable for indoor installations. The system is available in single level, double level and double busbar solutions and can be configured to suit your requirements.

  • Up to 24 kV, 4000 A, 50 kA.
  • Approved to be used for special applications such as marine, seismic, nuclear and type tested for IEC, GB/DL, GOST and CSA standards.
  • The switchgear does not require rear access for installation or maintenance, all the operations are carried out from the front.
LS Engineering Services - Electrical Distribution & Control

Control & Distribution

LS Engineering Services Ltd provide a variety of control and distribution solutions all designed and built to your exact requirements.

Past projects have included;

  • DC Distribution
  • Electro Pneumatic control boxes
  • Generator and Transformer control panels
  • Interposing relay panels
  • MCC/MCCB Distribution boards
  • Power distribution
  • Production line control systems
